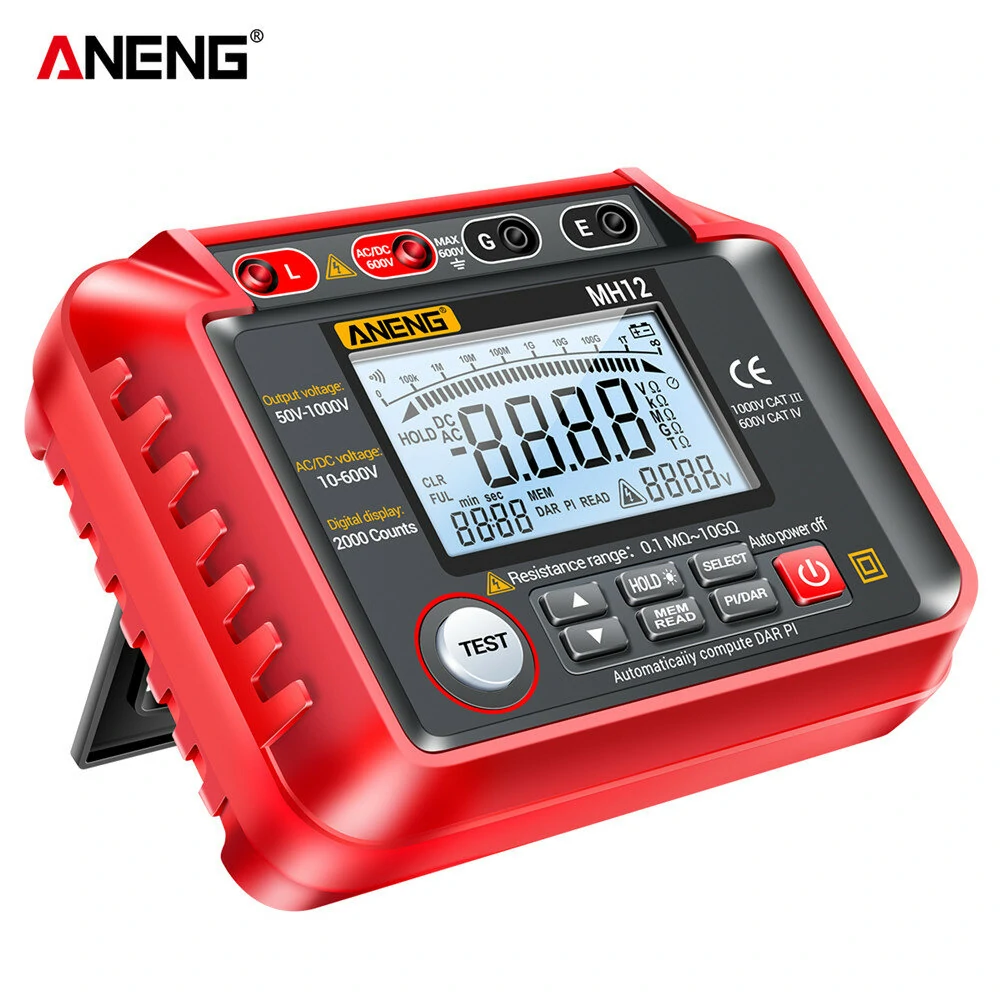

ANENG MH12 Insulation Earth Resistance Tester Digital Meter AC DC Ammeter Transistor Tester LCD Megohmmeter Meter Voltmeter Detect
5.0128 ratingsThe ANENG MH12 Insulation Earth Resistance Tester Digital Meter AC DC Ammeter Transistor Tester LCD Megohmmeter Meter Voltmeter Detect by ANENG is a premium product designed for everyday users. Customers praise its easy to set up and use and excellent build quality. 100% of buyers rate it 4★ or above.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
20% Off — you save ₹1,461 on this product!
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The ANENG MH12 Insulation Earth Resistance Tester Digital Meter AC DC Ammeter Transistor Tester LCD Megohmmeter Meter Voltmeter Detect by ANENG is a premium designed for everyday users. Customers highlight its easy to set up and use and excellent build quality.
Customer Verdict
100% of buyers rated this product 4 stars or above. The most appreciated qualities are: easy to set up and use, excellent build quality, great value for money, fast and responsive.
Why Buy from Elecvora?
Elecvora sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Feature:
LCD multiple display and analog bar display, full symbol display, automatic range, software calibration, full key operation.
1. AC and DC voltage measurement;
2. Insulation resistance measurement;
3. 100 groups of data storage;
4. Automatic calculation of polarization index, absorption ratio;
5. Backlight and data retention function;
Specification:
Material: ABS plastic
Size: 17.2*14*6.2cm/6.79*5.52*2.48in
Power supply: 8*AA batteries (not included)
Maximum display: 2000 counts
Measuring range:
1. Measure the output voltage
MH12: 50V-1000V, (50V, 100V, 250V, 500V, 1000V,).
2. Measure insulation resistance:
MH12: 0.1MΩ-10GΩ.
Absorption ratio and polarization index standard
Absorption ratio DAR:
The ratio of the insulation resistance value at 1 minute to the insulation resistance value at 30 seconds.
Polarization index PI:
The ratio of the insulation resistance value at 10 minutes to the insulation resistance value at 1 minute, to judge whether the equipment has affected the insulation resistance due to moisture
Insulating materials all have the absorption process and polarization process of charge after adding high voltage.
The power system requires that the polarization index should be measured in the insulation test of the main transformer, cable, motor, etc., and this data can be used to judge the quality of the insulation, quality and aging problems.
Package Included:
1 x Resistance megohmmeter
2 x Test lead
2 x Aligator clip
1 x Storage bag
1 x Manual
1 x Packing box
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
