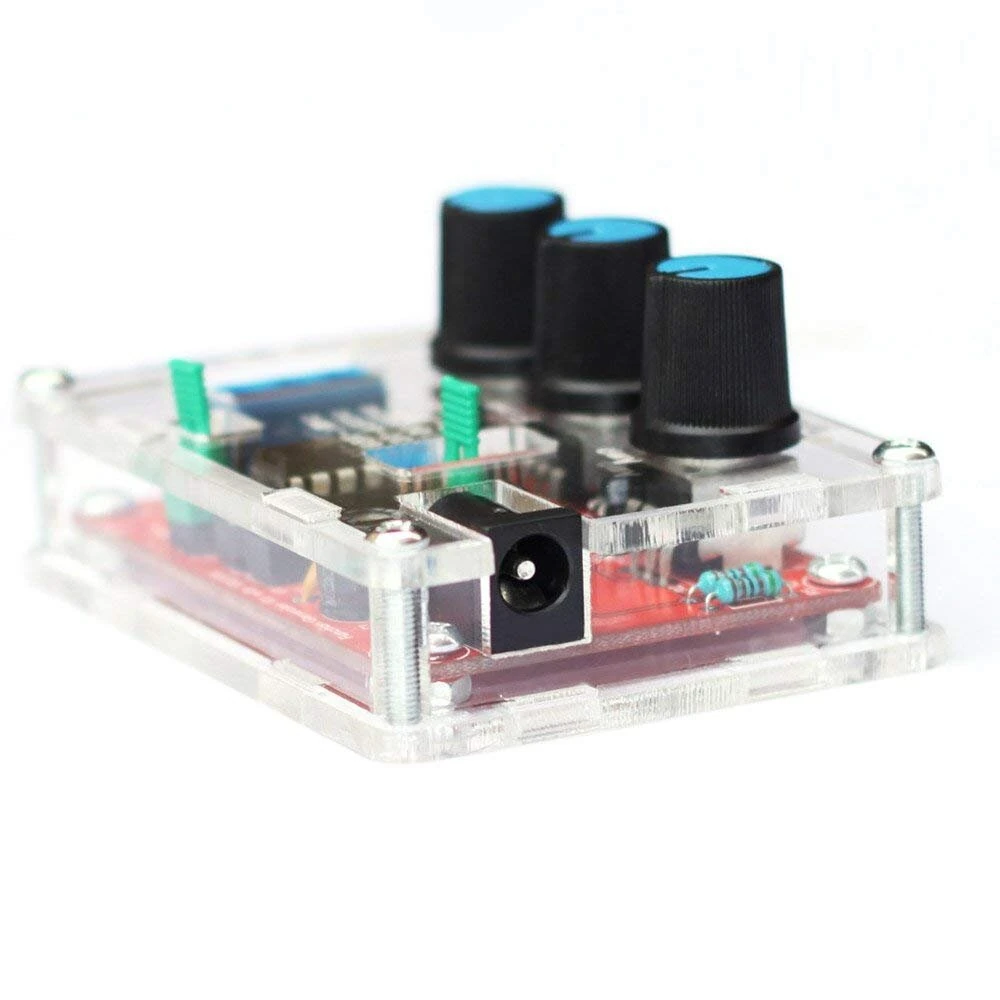

3Pcs Geekcreit® XR2206 Function Signal Generator DIY Kit Sine Triangle Square Output 1HZ-1MHZ
5.01 ratingThe 3Pcs Geekcreit® XR2206 Function Signal Generator DIY Kit Sine Triangle Square Output 1HZ-1MHZ by Geekcreit is a value-for-money product designed for DIY enthusiasts and makers. Customers praise its great value for money.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The 3Pcs Geekcreit® XR2206 Function Signal Generator DIY Kit Sine Triangle Square Output 1HZ-1MHZ by Geekcreit is a value-for-money designed for DIY enthusiasts and makers. Customers highlight its great value for money.
Why Buy from Elecvora?
Elecvora sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Voltage supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz - 1MHz
SINE wave:
Amplitude: 0 - 3V at 9V DC input
Distortion: Less than 1% (at 1kHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE-1wave:
Amplitude: 8V (no load) at 9V DC input
Rise Time: Less than 50ns (at 1kHz)
Fall Time: Less than 30ns (at 1kHz)
Symmetry: Less than 5% (at 1kHz)
TRIANGLE wave:
Amplitude: 0 - 3V at 9V DC input
Linearity: Less than 1% (up to 100kHz) 10mA
Note: This product requires soldering assembly
Package included:
3 x XR2206 Function Signal Generator DIY Kit
